V-Bend Seismic Connector

Used in a variety of applications and locations subject to seismic conditions or large amounts of pipework movement. The random motions common to earthquakes and thermal movement requires that seismic expansion joints be capable of movement in any direction. Can be manufactured to any configuration or movement parameters.

CE marking according to European Directive PED 2014/68/UE
Conformity certificate according to EN 10204 2.2
Material certificate according to EN 10204 3.1
Hydrostatic pressure tested

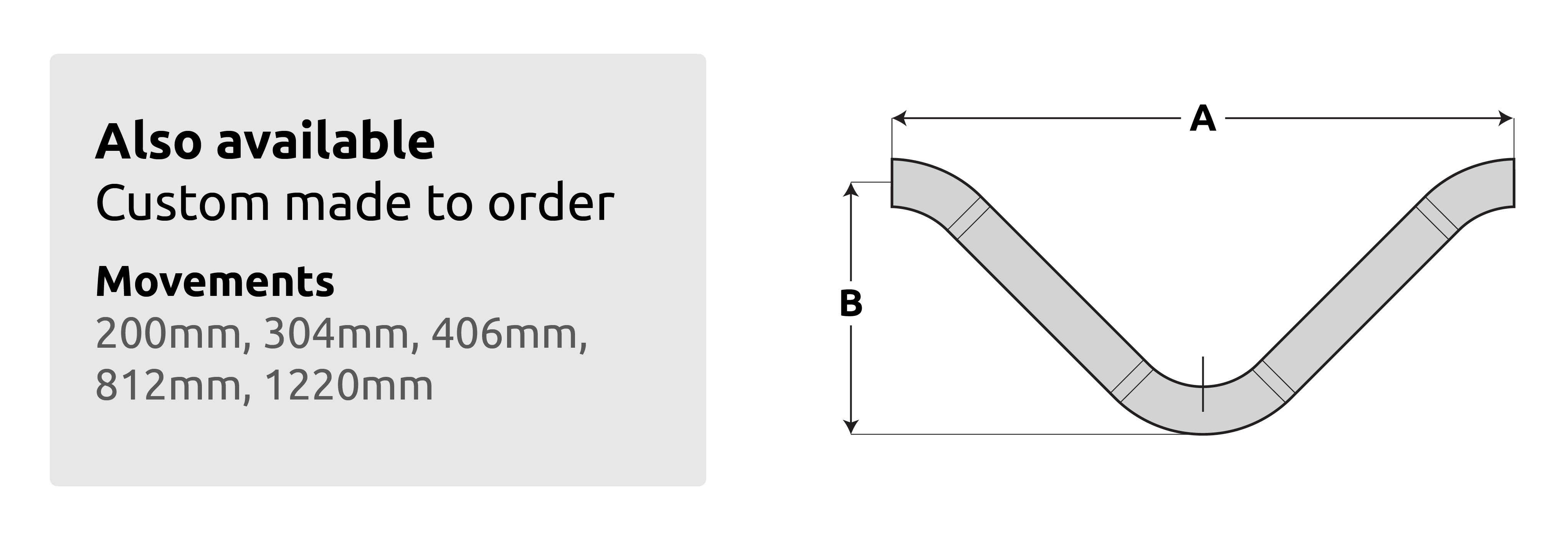

Code	Size (mm)	A (mm)	B (mm)	Qty
MG-V-025	25	660	320
MG-V-032	32	740	360
MG-V-040	40	850	410
MG-V-050	50	980	460
MG-V-065	65	1150	540
MG-V-080	80	1290	600
MG-V-100	100	1400	640
MG-V-125	125	1550	700
MG-V-150	150	1840	830

Your can email your list of selected products to your local branch for processing and payment. View your list now.

Chemical Compatibility

Use this tool to assess the compatibility of your product material relative to the chemical you intend to use it with.

View table (PDF)

A No effect: acceptable
B Minor effect: acceptable
C Moderate effect: questionable
D Severe effect: not recommended

The information in this chart has been supplied to Pipeline by a reputable source. It is provided as a courtesy to the customer and should be used only as a guide in selecting equipment for appropriate chemical compatibility.
